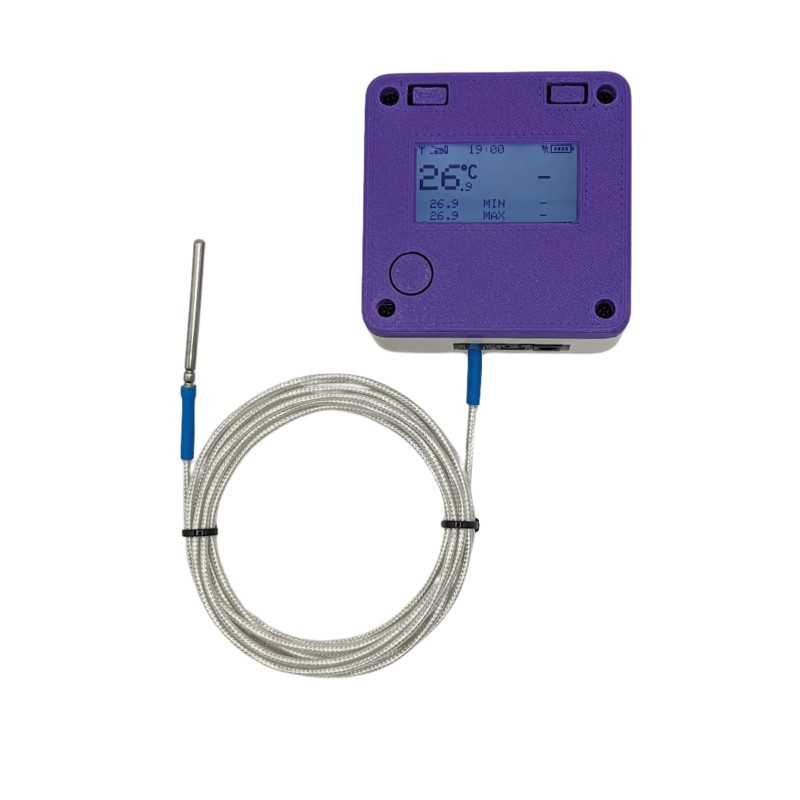

ATEK WiFi RTD Low-Temperature Transmitter
This ATEK WiFi RTD temperature transmitter is a low-temperature monitoring device that measures with an external RTD probe and wirelessly reports temperature data.
Applications
Features and Benefits
Technical Specifications
What's in the Box
- Ultra-low temperature freezer monitoring (-80°C)
- Power outage detection and notification
- Cryogenic tank temperature monitoring
- -150°C chest freezer temperature monitoring
Features and Benefits
- Gap-free data logging via onboard memory during network unavailability
- 0.01°C measurement resolution
- Real-time high/low limit alerts
- Up to two years of operation on an internal battery
- Factory calibrated with traceable certificate; ready at first power-up
- Min/Max reset for focused event analysis
- Secure WiFi connectivity for remote supervision
- Minimizes sample loss through early deviation detection
- Supports power outage awareness and rapid response
- Audit-ready records aligned with GxP/GMP
- Enhances operational resilience and continuity
Technical Specifications
- Parameter: Temperature
- Sensor type: Pt100 RTD (supports 2-, 3-, or 4-wire probes)
- Measurement range: Probe-dependent; suitable for ULT and cryogenic applications (approximately -196 to +100°C)
- Resolution: 0.01°C
- System accuracy: Probe-dependent; typically ±0.2°C within calibrated range
- Connectivity: WiFi 2.4 GHz (IEEE 802.11 b/g/n), WPA2-PSK security
- Data logging: Onboard timestamped buffer preserves records during network interruptions
- Alarms: Configurable high/low thresholds and connectivity/power events
- Power: Internal lithium battery, up to 2 years typical at standard settings
- Configuration: User-configurable sampling and reporting intervals
- Compatibility: External low-temperature RTD probes for freezers and cryogenic tanks
What's in the Box
- ATEK WiFi RTD temperature transmitter
- Low-temperature Pt100 RTD probe with cable
- Pre-installed battery
- Mounting kit
- Quick start guide
- Calibration certificate
ATEK-T-WF-RTD-LT
Data sheet
- Parameters
- Temperature
- Applications
- Cold Storage Warehouse
Liquid Nitrogen Cryogenic Tank -196°C
Ultra Low Temperature Freezer -80°C - Industries
- Biobank
Fundamental Research
Hospital Pharmacy
Microbiology
Vaccination
