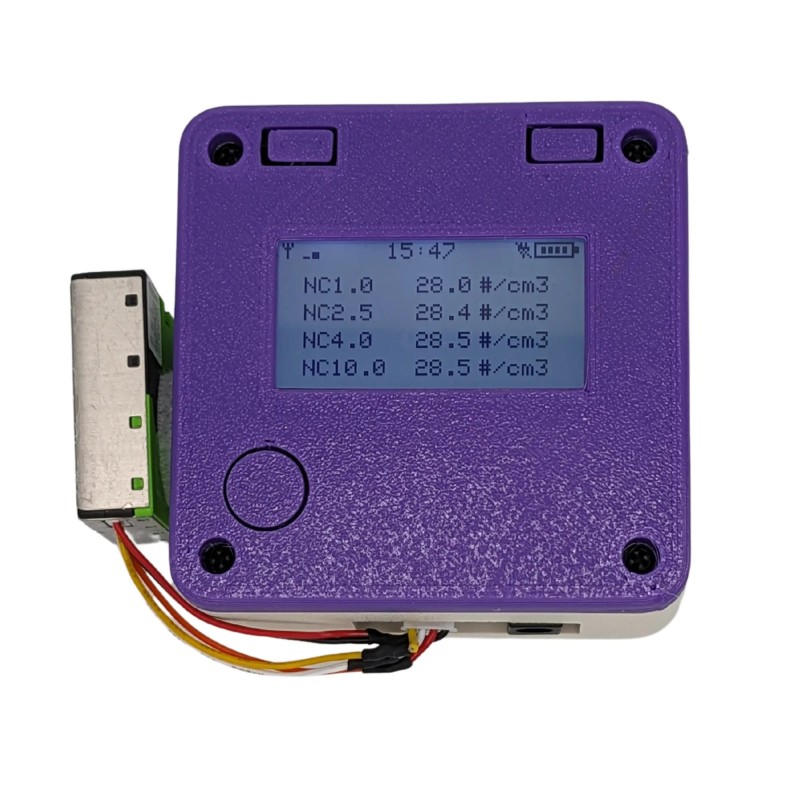

ATEK PM2.5/PM10 Particle Counter
This ATEK PM2.5/PM10 particle counter measures airborne particulate concentration and provides real-time values for monitoring controlled environments.
Applications
Features and Benefits
Technical Specifications
What's in the Box
- Indoor air quality monitoring in laboratories
- Pharmaceutical production and support areas
- Weigh rooms, preparation zones, and pressure-controlled spaces
- HVAC control and mechanical rooms
- Biotechnology research areas
Features and Benefits
- Real-time continuous PM2.5/PM10 measurement
- Concentration logging and trending
- Configurable thresholds and alarms
- Wi‑Fi connectivity for integration with supervisory systems
- Compact wall-mount design
- Calibration traceability
Technical Specifications
- Measured parameters: PM2.5 and PM10 (μg/m³)
- Measurement range: 0 to 500 μg/m³
- Resolution: 1 μg/m³
- Accuracy: ±10% of reading or ±10 μg/m³
- Measurement principle: laser scattering optical sensor
- Sampling interval: 1 to 60 s (configurable)
- Connectivity: 2.4 GHz Wi‑Fi (IEEE 802.11 b/g/n); MQTT/HTTP(S) protocols
- Power supply: 12–24 V DC, <2 W
- Operating temperature: 0 to 50 °C; humidity: 0–95% RH non-condensing
- Ingress protection: IP20 (indoor use)
- Dimensions: 120 × 80 × 35 mm; weight: 250 g
- Mounting: wall mount, kit included
What's in the Box
- ATEK PM2.5/PM10 particle counter
- 24 V DC power adapter
- Mounting kit and hardware
- Quick start guide
- Calibration certificate
ATEK-T-WF-PM
Data sheet
- Industries
- Clinical research
Hospital Pharmacy - Connectivity
- WiFi WPA2-Enterprise 802.1x
