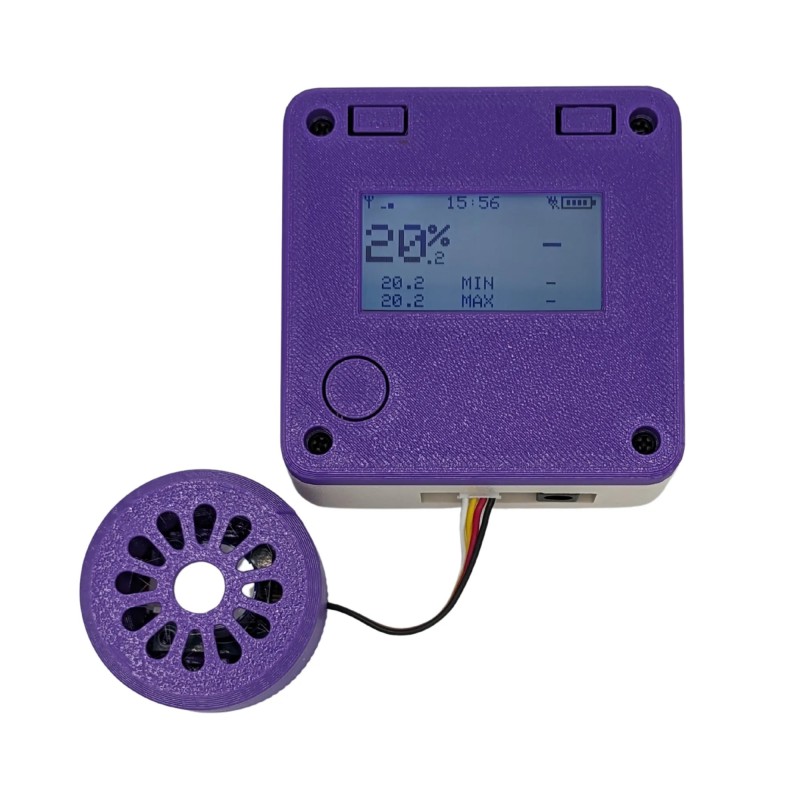

ATEK WiFi Oxygen (O2) Transmitter
This ATEK WiFi oxygen transmitter measures oxygen concentration from trace to ambient levels and wirelessly transmits readings to a monitoring system.
Applications
Features and Benefits
Technical Specifications
What's in the Box
- Low-oxygen monitoring in anaerobic chambers
- Microbiology labs for culturing anaerobic organisms
- Oxygen depletion monitoring in cryogenic areas
- Fertility clinics with cryopreservation banks
- Blood and tissue banks using cryogenic storage
- Research laboratories with large-scale cryo-generators
- Pharmaceutical manufacturing using cryogenic processes
- Hospital pathology labs with cryostorage units
Features and Benefits
- Onboard, timestamped data logging ensures gap-free records during network outages
- High-resolution measurement (down to 0.01% O2 or 1 ppm, model dependent)
- Instant threshold alerts via the monitoring platform
- Up to two years of continuous operation on internal battery
- Traceable measurements from first power-on with factory calibration
- Resettable min/max oxygen values for focused troubleshooting
- Supports regulatory compliance and data integrity (GxP environments)
- Enables proactive risk mitigation and rapid response
Technical Specifications
- Measured parameter: Oxygen (O2)
- Sensor options: percent-level or trace-level sensor (model dependent)
- Measurement range: 0–25% O2 (percent mode); 0–1000 ppm O2 (trace mode)
- Resolution: 0.01% O2 (percent mode); 1 ppm (trace mode)
- Accuracy: ±0.1% O2 (percent mode); ±2% of reading (trace mode)
- Response time (T90): ≤30 s (percent mode); ≤60 s (trace mode)
- Data logging: onboard memory ≥30,000 timestamped records; automatic upload on reconnection
- Alerts: configurable high/low thresholds with instant notifications
- Connectivity: WiFi 2.4 GHz (IEEE 802.11 b/g/n), WPA2 security
- Communication: HTTPS/TLS secure data transfer
- Power: internal lithium battery, up to 2 years; optional 5 V DC external
- Operating conditions: 0–50°C; 0–95% RH, non-condensing
- Mounting: wall/panel bracket included
- Calibration: factory calibrated, traceable certificate provided; field calibration supported
- Compliance: CE, FCC; designed for GxP-ready data integrity
What's in the Box
- ATEK WiFi Oxygen (O2) Transmitter
- Pre-installed oxygen sensor module (percent or trace)
- Pre-installed lithium battery
- Wall/panel mounting hardware
- Quick start guide
- Calibration certificate
ATEK-T-WF-O2
Data sheet
- Parameters
- Oxygen O2
- Applications
- Anaerobic chamber
Liquid Nitrogen Cryogenic Tank Storage Room - Industries
- Fundamental Research
- Connectivity
- WiFi WPA2-Enterprise 802.1x
