ATEK WiFi LN2 Level Monitor
This ATEK WiFi LN2 level monitor is a wireless device that monitors the presence of liquid nitrogen at a defined immersion depth in cryogenic tanks and transmits status data to the ATEK platform.
Applications
Features and Benefits
Technical Specifications
What's in the Box
- LN2 level monitoring in cryogenic tanks
- Power outage detection (via system integration)
- Research laboratories preserving samples at ultra-low temperatures
- Ultra-low freezers and refrigerators storing vaccines or biologics
- Incubators in cell culture and microbiology
- Data centers within research institutions
- Critical care units and operating rooms in hospitals
- Sterile product manufacturing lines
Features and Benefits
- Real-time notifications when level falls below the defined threshold
- Onboard memory stores timestamped level readings during network outages for a gap-free record
- Up to 2 years of continuous operation on the internal battery
- Enterprise WiFi with WPA2-Enterprise and 802.1X authentication

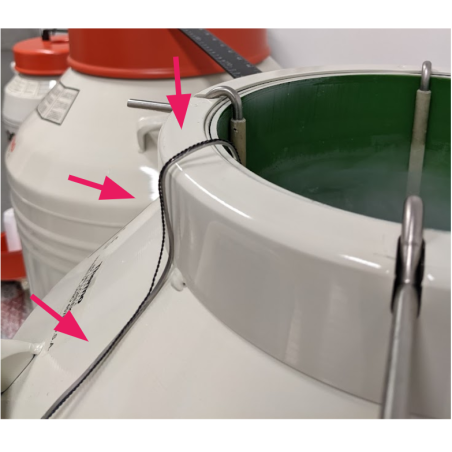

- Discreet submersion probe on a malleable stainless steel rod with adjustable depth
- Reset function for recorded minimum/maximum level events
Technical Specifications
- Connectivity: WiFi (supports WPA2-Enterprise 802.1X)
- Measurement method: binary submersion detection (probe tip in LN2 = 1 Normal; out of LN2 = 0 Alert)
- Adjustable immersion depth: up to 4 ft (≈1.22 m)
- Data transmission: to the ATEK monitoring platform
- Data logging: onboard timestamped storage during network unavailability
- Power: internal battery, up to 2 years autonomy
- Probe/rod material: stainless steel, malleable
What's in the Box
- ATEK WiFi LN2 level monitor
- Submersion probe with adjustable stainless steel rod
- Mounting hardware
- Pre-installed battery
- Quick start and WiFi setup guide
- Safety and user documentation
ATEK-T-WF-LN2-LVL
Data sheet
- Applications
- Liquid Nitrogen Cryogenic Tank -196°C
- Industries
- Biobank
Fundamental Research - Connectivity
- WiFi WPA2-Enterprise 802.1x
