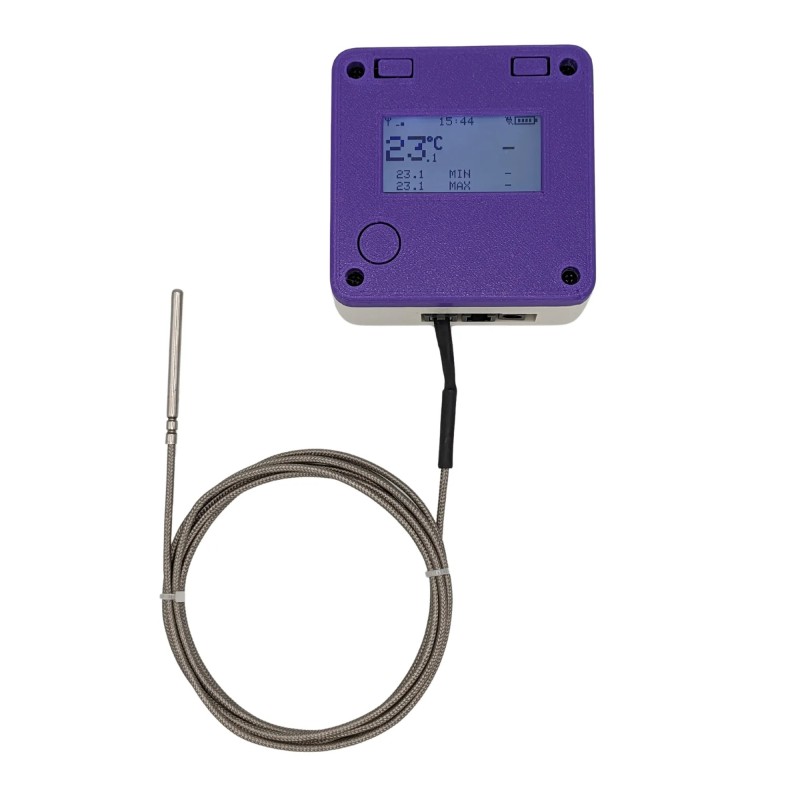

ATEK WiFi High-Temperature RTD Transmitter
This ATEK Wi‑Fi RTD transmitter is a measurement device that monitors temperature using a high‑temperature probe and transmits readings in real time over Wi‑Fi.
Applications
Features and Benefits
Technical Specifications
What's in the Box
- Ultra‑low freezers and refrigerators storing vaccines or biologics
- Incubators in cell culture and microbiology laboratories
- Data centers within research institutions
- Critical care units and operating rooms in hospitals
- Manufacturing lines for sterile products
- Bioreactor and fermenter temperature monitoring during CIP/SIP cycles
- Pharmaceutical stability chambers requiring periodic decontamination
- Veterinary research isolation incubators
- Medical device production cleanrooms with integrated sterilization protocols
- Aseptic processing lines in the food and beverage industry
- Autoclaves for sterilizing medical devices and laboratory samples
- Depyrogenation ovens in the pharmaceutical industry for glassware and components
- Hot air sterilizers used in microbiology and life sciences
- Biomedical waste incinerators requiring thermal monitoring
- Heat treatment ovens for specific industrial or research materials
Features and Benefits
- Timestamped internal logging to ensure gap‑free records during network outages
- 0.01°C measurement resolution for granular, traceable data
- Instant notifications when predefined thresholds are exceeded
- Resettable min/max recorded values for easier troubleshooting
- Up to 2‑year operation on the internal battery
- Accurate, traceable measurements immediately at startup; no initial on‑site calibration
- Minimizes loss of samples and reagents during power interruptions
- Immediate triggering of backup systems and emergency protocols
- Reduces costs from downtime and non‑compliance with audit trails for GMP
- Maximizes sterility assurance by avoiding sensor handling and recontamination
- Extends sensor lifespan by eliminating repeated removal/reinstallation
- Lowers operational expenditure and maintenance interventions
- Speeds up sterilization cycles with continuous monitoring during decontamination
- Enables complete and reproducible validation of high‑temperature cycles
- Reduces risks of cross‑contamination and product recalls
- Optimizes energy consumption through precise temperature control
- Provides documented, auditable evidence for strict regulatory requirements
Technical Specifications
- Measured parameter: Temperature
- Sensor type: RTD, high‑temperature probe
- Measurement range: -50 to +300°C
- Resolution: 0.01°C
- Accuracy: ±0.1°C (typical)
- Connectivity: Wi‑Fi 2.4 GHz (IEEE 802.11 b/g/n)
- Data logging: onboard memory with timestamping to bridge network outages
- Thresholds and alarms: configurable limits via the monitoring platform
- Power: internal battery, typical autonomy up to 2 years
- Operating temperature (electronics): -20 to +50°C
- Probe temperature rating: up to +300°C
- Calibration: factory calibrated, traceability certificate included
What's in the Box
- ATEK WiFi High‑Temperature RTD Transmitter
- High‑temperature RTD probe
- Wi‑Fi antenna
- Pre‑installed internal battery
- Mounting kit
- Calibration/traceability certificate
- User manual
ATEK-T-WF-RTD-HT
Data sheet
- Parameters
- Temperature
- Applications
- CO2 Incubator
- Industries
- Microbiology
- Connectivity
- WiFi WPA2-Enterprise 802.1x
